Koom Tes Ua ke Lub Log

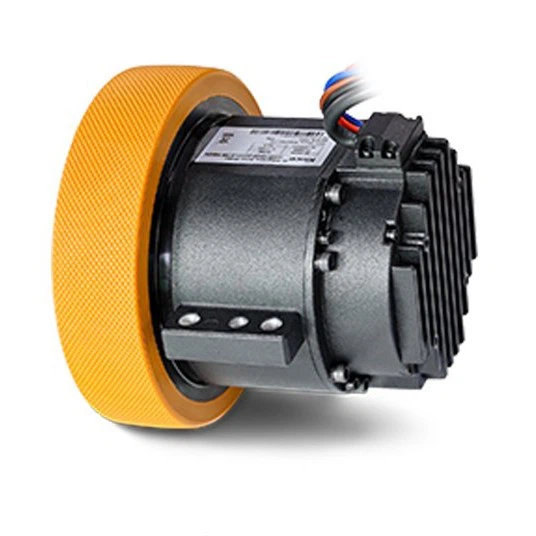

Iwmc sib koom ua ke lub logo yog cov khoom lag luam sib xyaw ua ke ntawm plaub lub ntsiab: tsav, khoom siv hluav taws xob, reducer thiab log. Nws yog tsuas yog ib tus neeg xa khoom ntawm cov khoom sib xyaw, nrog cov khoom lag luam zoo dua tom qab txij nkawm, txo cov khoom siv txuas thiab cov nqi muag khoom; Cov khoom tau teeb tsa hauv hom bracket, uas yog qhov yooj yim hauv txoj kev thiab siab nyob rau hauv precision, uas tuaj yeem txhim kho qhov tseeb ntawm kev tswj hwm kev taug kev; Tus qauv sib xyaw yog saws, thiab tsuas yog lub zog hluav taws xob thiab cov xaim hluav taws xob sab nraud yog txhim kho nws txoj kev tiv thaiv sab nraud, kev ruaj ntseg thiab kev ntseeg tau.
daim ntawv thov
Khoom nta
1. Lub ntsiab ntawm cov khoom siv tseem ceeb yog kev sib xyaw ua ke thiab kev cog lus hauv cov qauv, uas yog qhov zoo rau txoj kev miniaturization ntawm lub cev;
2. Kev teeb tsa kev teeb tsa, txoj kev teeb tsa yooj yim, qhov kev teeb tsa siab, thiab txhim kho kev tswj hwm kev tswj hwm raug;
3. Kev sib xyaw ua ke, kev cuam tshuam tiv thaiv kev tiv thaiv zoo, txhim kho kev ruaj ntseg thiab kev ntseeg tau ntawm tag nrho cov kab ke;
4. Kev txij nkawm zoo, kom zoo rau cov khoom lag luam tom qab, txo tus nqi saw thiab tom qab muag.
Khoom Qhia Txog Khoom
|
IWMC series yog ib qho kev sib xyaw ua ke log |
iwmc 10409-02222- 165- m dt |
|
|
Lub hauv paus |
Fais Fab Fais Fab |
24vdc -60 Vdc |
|
Logic Fais Fab Khoom |
24VDC |
|
|
Cov kab ntsuas hluav taws xob nrawm (m / s) |
1.9 |
|
|
Rated Torque Tn (NM) |
21 |
|
|
Ncov torque tn (nm) |
60 |
|
|
Cov Log Tsheb Thia (hli) |
165 |
|
|
Lub log tsheb dav (hli) |
39.5 |
|
|
Log Khoom Siv |
Polyurethane (yeem) |
|
|
Tyre Lightness Qib |
85A |
|
|
Dynamic Braking |
Sab nraud nres Kuj yuav tsum tsis kam (nyob ntawm kev ua haujlwm, tsuas yog siv rau kev pib nrawm thiab nres) |
|
|
Lub Zog Kev Siv EG Braking Voltage Aavim |
DC63V ± 2V (vim li ntawd, chaw) |
|
|
OVERVOLTAGE XEEM Voltage |
DC68V ± 2V |
|
|
Kev hloov siab lub Volfage |
DC18V ± 2V |
|
|
Cov lus tawm tswv yim |
2 kab ntawm cov tswv yim digital, tag nrho cov lus xaus, qib siab: 12. {{{{{{, Cov lus tshaj tawm: 1 kq. |
|
|
Cov Khoom Siv Tawm |
1 Digital Output Como Kawg|Qhov Muaj Peev Xwm Tshaj: 100 Ma |
|
|
Band-Hom Nres |
Ua-nyob rau hauv tuav ntsuas phoo thiab tswj hwm Circuit Court |
|
|
Yuam cov xauv interface |
1 yuam kom xauv interface, tsuas yog thaum lub log servo tsis muaj lub zog tawm tswv yim. |
|
|
Rs485 Chaw nres nkoj RS485 commissioning |
Txhawb kev txhawb siab tshaj plaws rau 115.2kbps Chaw nres nkoj chaw nres nkoj |
|
|
Yuav npav |
Txog li 1 Mbps Baud tus nqi, kev siv tuaj yeem qhib kev sib txuas lus raws kev sib txuas lus nrog cov maub los |
|
|
Lub hauv paus |
Nruam Nrauv Tshaj Tawm Tam Sim No (RMS) |
16A |
|
Ncaim Tam Sim No (Peak) |
100ap (<2s) |
|
|
Lub zog siv hluav taws xob tsim hluav taws xob lossis lub tshuab hluav taws xob |
Lub cev muaj zog nn (rpm) |
2000 |
|
Lub cev muaj zog Torque kev ntsuas TN (NM) |
2.4 |
|
|
Tuav tuav Torque t (NM) |
4 |
|
|
Suab nrov |
<65dB |
|
|
Txias-down txoj kev |
Ntuj txias, lub tsheb lub cev ib qho cua sov dissipation |
|
|
Lwm Qhov Chaw Haujlwm |
Tsev hauj lwm kub |
0-40 degree |
|
Tseg qhov kub |
-20 degree ~ 60 degree |
|
|
Av noo (tsis muaj hws) |
Hauv qab 90% rh |
|
|
Qib ntawm kev tiv thaiv |
Ntawv ip54 |
|
|
qho siab |
Cov neeg ntsuas ua haujlwm ntau dua 1000m, thiab thaum cov haujlwm siab tshaj plaws yog siab dua 1000%, thiab qhov siab tshaj plaws ua haujlwm siab tshaj yog 2000 meters |
|
|
Cov Cua Siab |
86 kpa ~ 106kpa |
|
Tuam txhab ua hauj lwm
Qingdao Xinchuang Sijhawm Fais Co., Ltd. Tsom Xyooj Nws tsom mus rau kev tshawb fawb thiab kev loj hlob, ntau lawm thiab muag khoom ntawm kev lag luam automation tswj cov khoom, thiab yog muab tso rau cov cuab yeej tsim khoom zoo siab. Nws yog raws li kev muaj tshuab automation control technology nrog cov kev cai ywj pheej txoj cai, thiab siv cov kev daws teeb meem sai ntawm cov neeg siv khoom raws li nws tus qauv lag luam tseem ceeb. Nws tseem yuav tau cog lus los txhawb kev lag luam kev vam meej nrog cov ua haujlwm thev naus laus zis, thiab yog tus thawj coj hauv tshav pob ntawm kev tswj cov tshuab hauv tsev. Nws tau nqis peev 20 lab yuan hauv R & D thiab muaj ntau tshaj 290 R & D cov neeg ua haujlwm tshwj xeeb hauv kev tshawb fawb lub zog platform Teas, kev tshawb fawb thev naus laus zis thiab kev tsim khoom.
